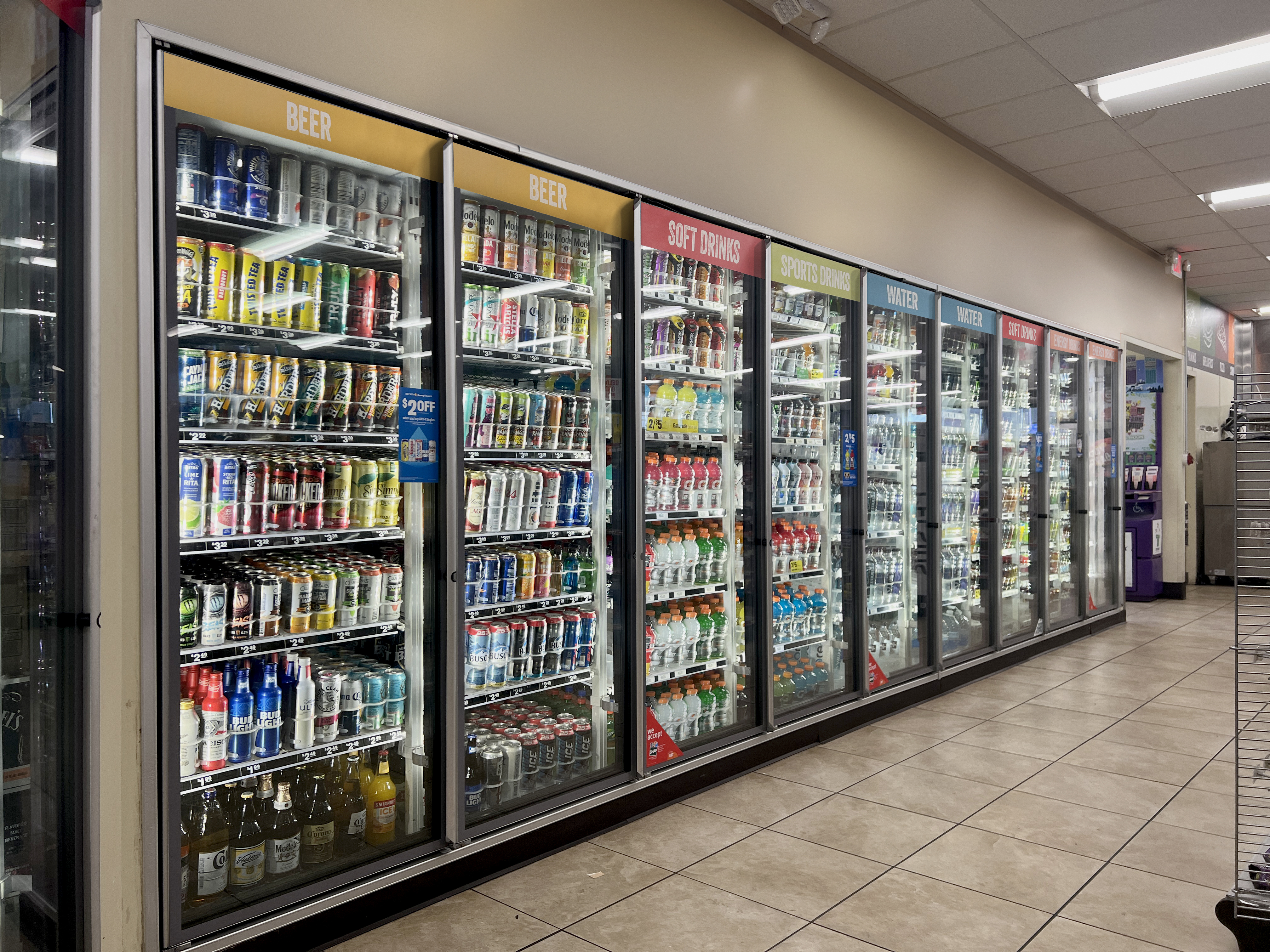

EVEREST All Glass Door System
Energy Door Company’s EVEREST™ door system is engineered to increase performance while reducing energy costs. Its triple-pane sealed insulated glass delivers exceptional thermal performance, maximized energy savings, and unmatched protection against condensation.
Durable and energy-efficient, the EVEREST™ door is designed to perform reliably even in the most demanding conditions helping ensure long-term efficiency and the lowest possible cost of ownership.
Available Finishes:
Black
Silver Satin
Downloads :
Product Specifications
Door widths
30″
Door height
75″, 79″
Shelving widths
30″, 60″
Shelving depths
24″, 27″, 36″, 42″
- Standard led lighting
- Standard handle
- High-performance 3-pane glass
- Magnetic gasket
- Field reversible
- Continuous or full flange
- Standard or french swing configuration
- 90 degree hold open
- Torque master tension adjustment
- Energy controller
- MiniRoller
- Gravity flow shelving
- Double-wide shelving for french doors
- Flex carts
- Envision™ led lighting
- Energy free frame
- Aftermarket and cylinder locks available
- MiniRoller
- Gravity flow shelving
- Double-wide shelving for french doors
- Flex carts
- Matching pass-thru single and double-entry doors
- Full-length handle
Our products are compatible with: Hussmann, Kysor Warren, Hillphoenix, Zero Zone, and more.
Product Comparison
|
Current
EVEREST all glass door system
|
PRO-E™ Energy-free glass doors
|
SELECT™ Energy-free glass doors
|
PRIME™ Energy-free glass doors
|
VUE™ Energy-free glass doors
|
|
|---|---|---|---|---|---|
| Application | |||||
| Cooler | |||||
| Freezer | |||||
| Heavy-Duty Beer Cave | |||||
| Temperature/Environment | |||||
| Normal Temp: 75°F/ 60% RH Ambient/35°F Walk-In |
|
||||
| High Humidity: 75°F/ 65% RH Ambient/35°F Walk-In |
|
|
Optional (65%) | ||
| Low Temp: 75°F/ 55% RH Ambient/ -10°F Walk-In |
|
||||
| Low Temp: 75°F/ 65% RH Ambient/ -10°F Walk-In | |||||
| Glass Pack Configuration | |||||
| Glass Standard — 3-pane |
|
||||
| Glass Standard — 2-pane | |||||
| All-Glass Look |
|
|
|||
| Pass-Thru Options | |||||
| Matching Pass-Thru Door |
|
||||
| Optional Glass (1/3 Glass with 2/3 Block out Panel) | |||||
| Kickplates (10”, 24”, 36”, and 48”) | |||||
| Energy Consumption* | |||||
| Normal Temperature - Heated Frame | 1.21 kWh/day | 1.21 kWh/day | 1.21 kWh/day | 1.21 kWh/day | 1.21 kWh/day |
| Normal Temperature - French Door - Heated Frame | .79 kWh/day | .79 kWh/day | .79 kWh/day | .79 kWh/day | .79 kWh/day |
| Low Temperature | 3.2 kWh/day | 3.2 kWh/day | 3.2 kWh/day |
* Energy consumption values listed are actual values and are based on a catalog size 30” x 75”, 4 door line up for each model.
These doors are designed and certified for use in walk-in cooler and/or walk-in freezer applications.
