PRO-E™ Pass-through doors

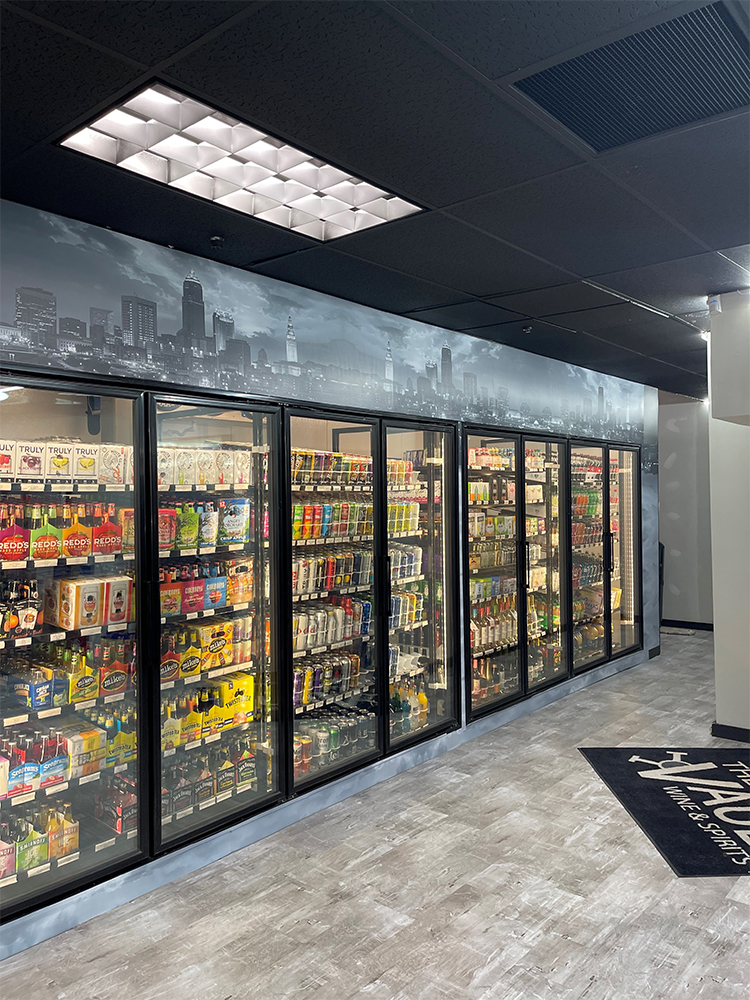

Having a beer cave in your store offers a distinct advantage over the competition — but it also brings a constant energy drain from frequent traffic. Now, you can maximize performance and reduce your beer cave's energy costs with the smart-design ProE™ commercial pass-through door system.
Triple pane/dual seal insulated glass provides superior energy consumption savings and unparalleled condensation protection. Even in the busiest stores, the ProE pass-through beer cave door maintains its durability and energy-efficiency.
Available Finishes:
Black
Silver Satin
Downloads :
Product Specifications
Door widths
30″, 36"
Door height
81", 84"
- EnVision™ LED
- Full length handle
- Kick plates
- Energy controller
- Locks
- Flex carts
- Roll-A-Way carts
Our products are compatible with: Hussmann, Kysor Warren, Hillphoenix, Zero Zone, and more.
- 1 or 2 door configurations
- Metal handle
- Push bar
- 3 pane high-performance glass
- Full flange
- French swing configuration available
- Heavy duty spring loaded hinges
- Dual seal insulated glass
- LED lighting optional
- 10 year sealed glass unit warranty
- 1 year workmanship and labor warranty
Product Comparison
|
Current
PRO-E™ Pass-through doors
|
SELECT™ Pass-through doors
|
PRO-E™ Energy-free glass doors
|
SELECT™ Energy-free glass doors
|
PRIME™ Energy-free glass doors
|
VUE™ Energy-free glass doors
|
|
|---|---|---|---|---|---|---|
| Application | ||||||
| Cooler | ||||||
| Freezer | ||||||
| Heavy-Duty Beer Cave | ||||||
| Temperature/Environment | ||||||
| Normal Temp: 75°F/ 60% RH Ambient/35°F Walk-In | ||||||
| High Humidity: 75°F/ 65% RH Ambient/35°F Walk-In | Optional (65%) | Optional (65%) | ||||
| Low Temp: 75°F/ 55% RH Ambient/ -10°F Walk-In | ||||||
| Low Temp: 75°F/ 60% RH Ambient/ -10°F Walk-In | ||||||
| Glass Pack Configuration | ||||||
| Glass Standard — 3-pane | ||||||
| Glass Standard — 2-pane | ||||||
| Pass-Thru Options | ||||||
| Matching Pass-Thru Door | ||||||
| Optional Glass (1/3 Glass with 2/3 Block out Panel) | ||||||
| Kickplates (10”, 24”, 36”, and 48”) | ||||||
| Energy Consumption* | ||||||
| Normal Temperature - Heated Frame | 1.21 kWh/day | 1.21 kWh/day | 1.21 kWh/day | 1.21 kWh/day | 1.21 kWh/day | 1.21 kWh/day |
| Normal Temperature - French Door - Heated Frame | .79 kWh/day | .79 kWh/day | .79 kWh/day | .79 kWh/day | 79 kWh/day | .79 kWh/day |
| Low Temperature | 3.2 kWh/day | 3.2 kWh/day | 3.2 kWh/day | 3.2 kWh/day |
* Energy consumption values listed are actual values and are based on a catalog size 30” x 75”, 4 door line up for each model.
These doors are designed and certified for use in walk-in cooler and/or walk-in freezer applications.
